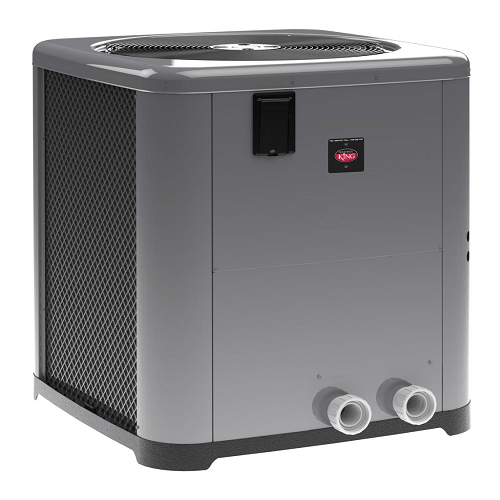

Pool and Spa Heat Pump 6560

Description

Core Performance and Design: This model has a heating capacity of 118,000 BTU/h (34.5 kW), with a COP of up to 6.0, delivering excellent energy efficiency. It features a spiral titanium tube heat exchanger; titanium’s natural corrosion resistance allows it to withstand harsh pool chemical environments, and the spiral geometry reduces scale buildup through a “scooping and lifting” effect that improves heat transfer efficiency. The rated flow rate is 49.5 GPM, with a water flow range of 30 to 60 GPM. It uses 2-inch offset PVC union connections, simplifying the installation process.

Durability and Quiet Design: The cabinet is made of powder-coated steel, more durable than plastic housings from competitors at the same price point, with greater impact and weather resistance. It incorporates a scroll compressor, which operates quietly and efficiently, and whose tolerance fit actually improves over time with use. Sound-dampening pads further reduce vibration and improve drainage, making this model one of the quieter options in its BTU class.

Control and Intelligence: It features a digital control panel that allows precise temperature settings independently for the pool and spa, along with energy-saving options. The onboard diagnostic system provides fault information to users and technicians through easy-to-read service codes. It is compatible with most two-wire and three-wire remote control systems on the market, making it easy to integrate into existing pool automation solutions.

Electrical and Installation Requirements: It requires a 208-230V single-phase power supply with a 50-amp dedicated circuit breaker.
