Rheem TWPH-6550EHT10 Crosswind V Heat Pump 118K 208-230V

Description

Core Performance and Design: This model belongs to the Crosswind V vertical discharge series, with a heating capacity of 118,000 BTU/h. It features a vertical discharge design with a compact, lightweight body weighing approximately 286 lbs (about 130 kg). It can be installed on a standard equipment pad, is compatible with industry-standard 2-inch plumbing connections, and allows for convenient servicing through the front panel.

Smart Control and Automation: It includes a built-in Wi-Fi module, allowing remote monitoring and adjustment of pool temperature anytime, anywhere through the Raymote mobile app, along with real-time status updates and service alerts. It features a capacitive touch control panel with clear, easy-to-read diagnostic information, and real-time status notifications pushed directly to users and service technicians. The Operation Manager can manage the heater and one accessory, and supports automatic scheduling, intelligently adapting to pool size and notifying the user when the set temperature is reached.

System Compatibility and Expansion: It provides a 3-wire remote plug, compatible with all major competitor controllers, making it easy to integrate into existing pool automation systems. The unit has two built-in auxiliary dry contact ports that can directly connect pool lights or water features; optional relays are also available to control high-voltage accessories.

Maintenance Convenience: The control junction box (J-box) can be removed by simply unscrewing 4 screws, and together with the extended control wiring harness, it makes inspecting and cleaning internal components easy. It features a durable powder-coated steel cabinet.

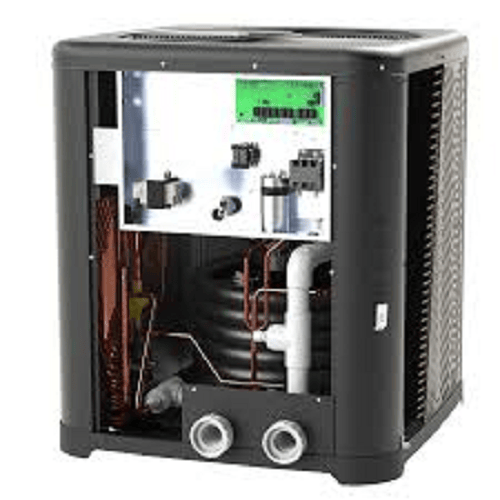

Core Components: It is equipped with a titanium tube heat exchanger (corrosion-resistant), a scroll compressor, an evaporator coil, and an integrated plastic base pan.

Electrical Specifications: It uses a 208-230VAC power supply, R-410A refrigerant, and has a maximum water flow rate of 60 GPM.

Product Line Relationship: This model corresponds to Raypak part number TWPH-6550EHT08, being the same product under different brand lines (Rheem vs Raypak).
